With the release of Netflix’s adaptation of “The Three-Body Problem,” I found myself inspired to take on a small but chaotic project: simulating the three-body problem in classical mechanics. This famous physics puzzle has fascinated scientists for centuries, not just for its theoretical implications but for the sheer beauty of the chaos it produces.
Here, I’ll walk you through some fundamentals of the three-body problem, my implementation of it in Python, and how I visualized the beautiful, unpredictable trajectories that emerge. If you’re curious about the science or just enjoy watching celestial bodies dance around in complex patterns, this post is for you!
What Is the Three-Body Problem?
The three-body problem is a famous question in classical mechanics: given three celestial bodies interacting through gravity, can we predict their motions over time? Newton’s laws of motion and universal gravitation make it straightforward to solve for two bodies (like Earth and the Moon), but when you add a third, things get… messy. The system becomes non-linear, and no general analytical solution exists.
Instead of neat ellipses or predictable patterns, the paths of the three bodies are often chaotic—highly sensitive to their initial conditions. This means a tiny change in the starting positions or velocities can lead to wildly different outcomes.
Applications and Implications
- Astrophysics: Studying how stars or planets interact in systems like triple-star formations.
- Mathematics: Developing numerical methods and chaos theory.
- Entertainment: As seen in Liu Cixin’s “The Three-Body Problem” trilogy and its recent Netflix adaptation.
The Simulation
To recreate the three-body problem, I implemented a Python simulation inspired by an article on Towards Data Science. The core idea is to use numerical integration to calculate the forces and resulting accelerations on each body, then update their positions and velocities step by step.
Key Equations
The gravitational force between two bodies is given by:
\[\mathbf{F} = G \frac{m_1 m_2}{r^2} \hat{r}\]
where:
- \(G\): Gravitational constant
- \(m_1, m_2\): Masses of the bodies
- \(r\): Distance between them
- \(\hat{r}\): Unit vector pointing from one body to the other
Using Newton’s second law, \(\mathbf{F} = m \mathbf{a}\), we can compute the acceleration \(\mathbf{a}\) for each body. Combining these forces across all pairs of bodies allows us to determine their motion over time.
Technical Implementation
1. Numerical Integration
Since there’s no exact solution, I used the fourth-order Runge-Kutta (RK4) method to integrate the equations of motion. This method provides a balance between accuracy and computational efficiency.
2. Initial Conditions
The beauty of the three-body problem is that the outcome depends entirely on the initial conditions. For my simulation, I started with arbitrary masses, positions, and velocities for the three bodies:
# Initial masses, positions, and velocities
m1, m2, m3 = 1.0, 1.0, 1.0 # Masses
r1, r2, r3 = [1, 0], [-0.5, 0.87], [-0.5, -0.87] # Initial positions
v1, v2, v3 = [0.1, 0.2], [-0.2, -0.1], [0.1, -0.1] # Initial velocities
3. Visualization

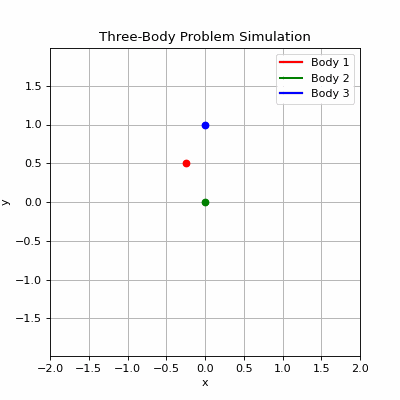

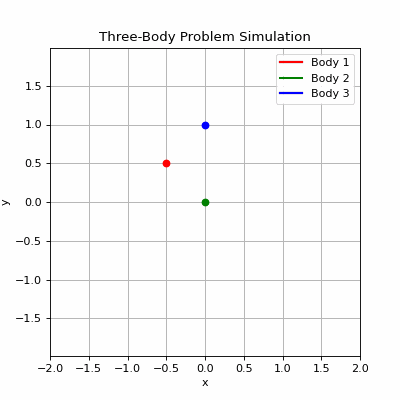

I used matplotlib to plot the trajectories of the three bodies. By recording their positions at each time step, I could create dynamic visualizations of their chaotic dance. Here’s a couple mesmerizing motion of the bodies over time.
Observing the Chaos
One of the most striking aspects of the three-body problem is its chaotic nature. Even a slight tweak to the initial conditions results in vastly different trajectories. Below are a few key observations:
- Unpredictability: The system’s sensitivity to initial conditions is a hallmark of chaos theory. While the physics are deterministic, predicting the long-term behavior is nearly impossible.
- Beauty: The trajectories often form looping, interwoven patterns that are both mathematically and visually stunning.
- Energy Conservation: Despite the chaos, the total energy of the system remains conserved (assuming no external forces).
Reflection and Next Steps
This project was a fun way to combine physics, coding, and art. Watching the simulated bodies spiral into chaotic orbits brought the theoretical concepts of the three-body problem to life. Plus, it gave me a deeper appreciation for the challenges faced by astronomers and mathematicians who study these systems in real life.
Potential Enhancements
- Interactive Visualization: Using libraries like
plotly or manim for more interactive and engaging visuals.
- Real-World Parameters: Modeling actual celestial systems, such as triple-star systems or spacecraft trajectories.
- Exploring More Bodies: Extending the simulation to four or more bodies to observe how the complexity scales.
Try It Yourself!
If you’re intrigued by the three-body problem, I encourage you to try coding your own simulation. It’s a great way to learn about numerical methods, physics, and the unpredictable beauty of chaos. You can find the source code I used on my GitHub (link to be added).
Happy coding, and enjoy the chaos!
